Edge E2 - Smart Secura Key Card Reader Access System (Post Mount) - AAS 27-220SK

The Edge E2 is a new smart card reader that can update your security using some of the most progressive and advanced technology. The Edge E2 can be programmed and set up all on the unit or via the mobile app, making setup easily customizable and quick. The Edge E2 offers an SBI Flex™ 64-bit Wiegand protocol as well as the industry-standard 26-bit protocol, giving you options to build the system you need.
Part Number: 27-220SK
$822.86 each
$822.86 each
OR


Details

Edge E2 - Smart Secura Key Card Reader Access System (Post Mount) - AAS 27-220SK

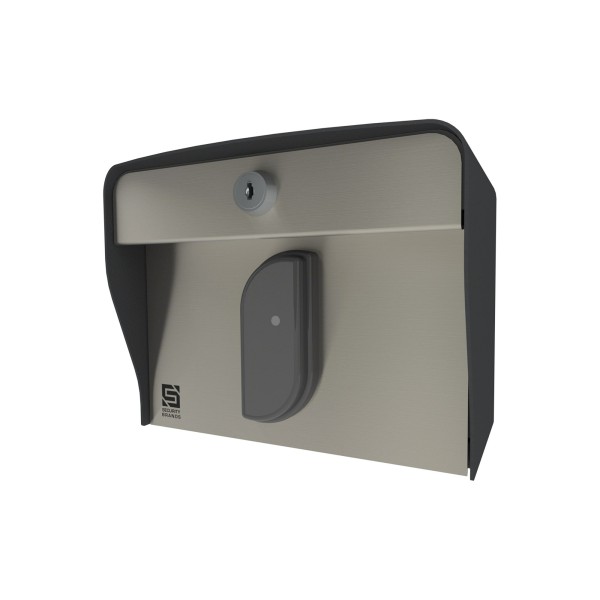

The Edge E2 Smart Card Reader is an innovative access control system, able to control up to two gates or doors. This model is post-mounted, made with a stainless-steel faceplate and a powder-coated steel enclosure, making it durable against wear and tear. The E2 features a Secura Key proximity reader, keeping your entryway secure no matter the day or time.

The Edge E2 has two available Wiegand inputs, the standard 26-bit protocol, and the SBI Flex 64-bit Wiegand protocol. These allow the system to offer the customization and flexibility you need to keep your location secure. The 26-bit protocol provides the option to connect other Wiegand devices to your Edge E2 and SBI Flex 64-bit Wiegand protocol gives you the option for 4-to-11-digit codes with a 3-digit facility code equaling up to 100 billion codes.

The Edge E2 can be programmed and controlled from the unit's internal programming pad, but with the secure, easy-to-use mobile app, you can program and manage the keypad all from the administrator app. Once the Edge E2 has connected via Bluetooth, you can manage updates, sync data, and export reports. The Edge Smart Keypad App is available for both Apple and Android devices.

PS-12DC1 - 12-24 VAC/DC Power Supply Included.

App Features:

  • Relay Control to Latch/ Unlatch Lock
  • Random Code Generator
  • Event Reports with CSV
  • Limited-Use Codes with Weekly or Yearly Restrictions
  • Special Event Timers for 7 day, 365-day, or Holidays
  • Quick Cloning For Multiple Unit Setups

Key Features:

  • Secura Key Proximity Reader
  • Bluetooth Connectivity
  • Internal PIN Pad for Programming
  • Configurable Permissions On All Keypad Codes, Transmitters, Card Readers, and Vehicle Tag Readers
  • 2 Relays
  • 1 Weigand Inputs
  • 26-bit and SBI Flex 64-bit Wiegand Protocol
  • 2 Configurable Event Inputs
  • 2 Configurable Digital Inputs
  • Alarm Shunt
  • Anti-passback
  • Firmware Updates Via the App

Specification Sheet

Quick Start Guide

Edge Wiring Guide

Edge Programming Manual

Edge Technical Bulletin

SKU 27-220SK
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Product Type Card Reader
Application Type Commercial: business offices, warehouses, retail stores
Card Type SecuraKey Card
Series Type Edge E2
