Edge E3 - Smart HID Card Reader and Keypad Combo Access System (Post Mount) - AAS 27-230HID

The Edge E3 is a new smart card reader and keypad that can update your security using some of the most progressive and advanced technology. The Edge E3 can be programmed and set up all on the unit or via the mobile app, making setup easily customizable and quick. The Edge E3 offers an SBI Flex™ 64-bit Wiegand protocol as well as the industry-standard 26-bit protocol, giving you options to build the system you need.
Part Number: 27-230HID
$808.57 each
$808.57 each


Edge E3 - Smart HID Card Reader and Keypad Combo Access System (Post Mount) - AAS 27-230HID

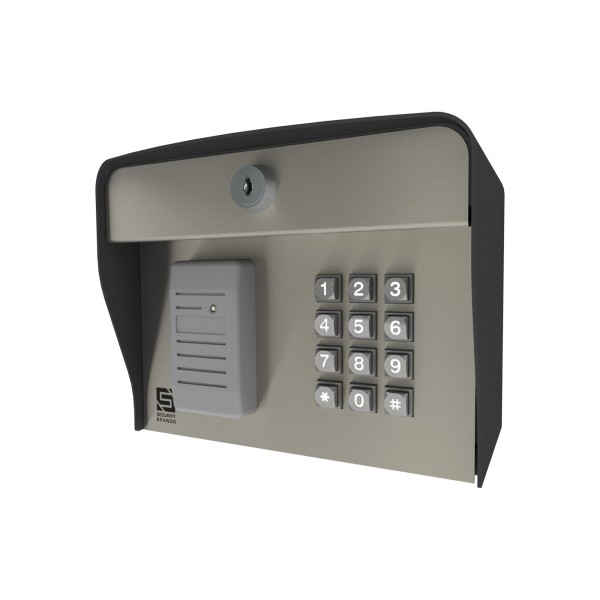

The Edge E3 Smart Card Reader and Keypad is an innovative access control system, able to control up to two gates or doors. This model is post-mounted, made with a stainless-steel faceplate and a powder-coated steel enclosure, making it durable against wear and tear. The E3 features a HID ProxPoint Plus proximity reader and a LED-backlit keypad, keeping your entryway secure no matter the day or time.

The Edge E3 has two available Wiegand inputs, the standard 26-bit protocol, and the SBI Flex 64-bit Wiegand protocol. These allow the system to offer the customization and flexibility you need to keep your location secure. The 26-bit protocol provides the option to connect other Wiegand devices to your Edge E3, and the SBI Flex 64-bit Wiegand protocol gives you the option for 4-to-11-digit codes with a 3-digit facility code equaling up to 100 billion codes.

The Edge E3 can be programmed and controlled from the unit, but with the secure, easy-to-use mobile app, you can program and manage the keypad all from the administrator app. Once the Edge E3 has connected via Bluetooth, you can manage updates, sync data, and export reports. The Edge Smart Keypad App is available for both Apple and Android devices.

PS-12DC1 - 12-24 VAC/DC Power Supply Included.

App Features:

  • Relay Control to Latch/ Unlatch Lock
  • Random Code Generator
  • Event Reports with CSV
  • Limited-Use Codes with Weekly or Yearly Restrictions
  • Special Event Timers for 7 day, 365-day, or Holidays
  • Quick Cloning For Multiple Unit Setups

Key Features:

  • HID ProxPoint Plus Proximity Reader
  • LED-backlit keypad
  • Bluetooth Connectivity
  • Configurable Permissions On All Keypad Codes, Transmitters, Card Readers, and Vehicle Tag Readers
  • 2 Relays
  • 1 Weigand Input
  • 26-bit and SBI Flex 64-bit Wiegand Protocol
  • 2 Configurable Event Inputs
  • 2 Configurable Digital Inputs
  • Alarm Shunt
  • Anti-passback
  • Firmware Updates Via the App

Specification Sheet

Quick Start Guide

Edge Wiring Guide

Edge Programming Manual

Edge Technical Bulletin

Name Edge E3 - Smart HID Card Reader and Keypad Combo Access System (Post Mount) - AAS 27-230HID
SKU 27-230HID
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Product Type Card Reader
Application Type Commercial: business offices, warehouses, retail stores
Card Type HID Key Card
Series Type Edge E3
Price $808.57
