Advantage DKE Digital Economy Metal Keypad (Post Mount) - AAS 26-100L
Details

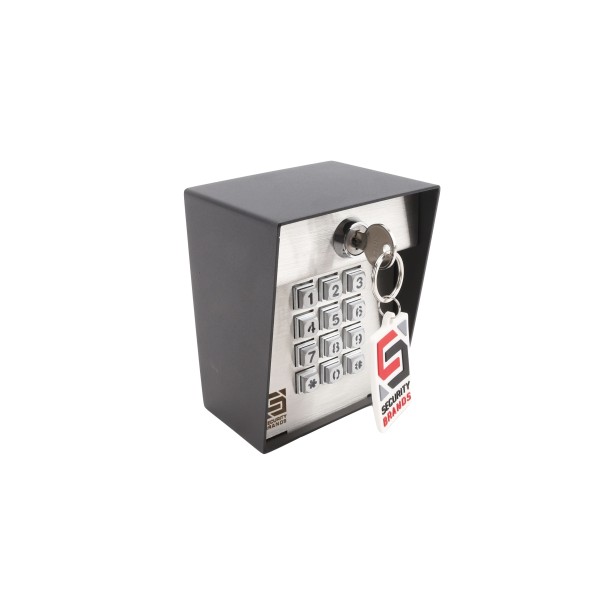

Advantage DKE Digital Economy Metal Keypad (Post Mount) - AAS 26-100L
Are you in need of an inexpensive keypad? The economical Advantage DKE digital keyless entry system features 500 fully programmable, four-digit codes.
This AdvantageDKE post mount model is housed in a heavy metal, powder coated enclosure with a stainless steel faceplate. A metal keypad is used, providing years of trouble free use. With its 500 code capacity, the 26-100L keypad is the perfect solution for many low cost installations.
Features
- 500 programmable four digit codes
- Programmable Personal Master Code
- Programmable Latch / Unlatch Code
- Night Light
- Variable relay output time: 1 - 9 seconds
- Audible tone
- Non-volatile memory
- Power consumption: 25mA @ 24VAC
- Limited two year warranty
- Post mount
General Specifications
- Input: 12-24 VAC or VDC
- Output: n/o or n/c contact 1 -9 second
- Operating temperature: -15 to 175 Fahrenheit
- 16 gauge stainless steel faceplate
- 16 gauge powder coated enclosure
- Dimensions: 26-100L: 5.25h x 4.00w x 3.00d
- Ship weight: 5 lbs.
Relay Specifications
- DC Load AC Load
- Contact Rating 1A @ 24V .5A @ 120V
- Max. switching voltage 150V 220V
- Max. carrying current 2A 2A
- Max. switching power 28W 60VA
| Name | Advantage DKE Digital Economy Metal Keypad (Post Mount) - AAS 26-100L |
|---|---|
| SKU | 26-100L |
| Manufacturer | Security Brands, Inc. / American Access Systems, Inc. |
| Programmable Codes | 500 |
| Features | Backlit/ Nightlight, Hardware Included, Lock |
| Mounting Type | Post Mount |
| Application Type | Commercial: business offices, warehouses, retail stores |
| Series Type | Advantage |
| Price | $221.04 |
