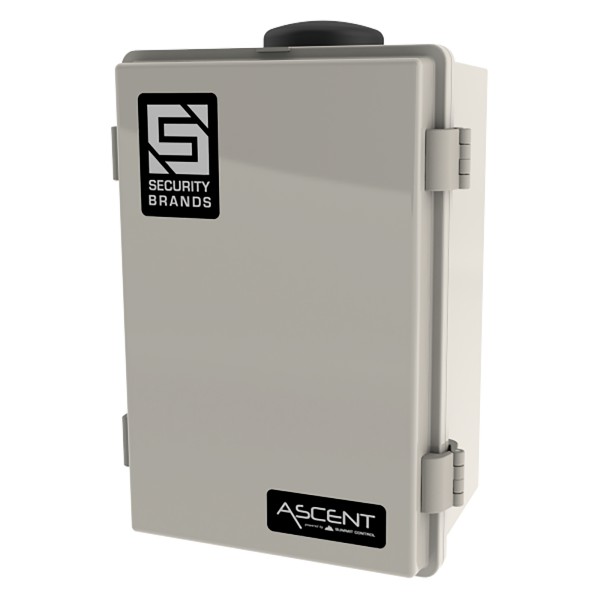

Summit Control Ascent C Cellular Controller Gate Access System With 2 Relays, 2 Weigand Inputs & LTE - AAS 25-C2

Control up to two access points and grant permissions via app, text, voice or Weigand device using the Ascent C2!
Part Number: 25-C2
$922.75 each
$922.75 each
OR


Details

Summit Control Ascent C Cellular Controller Gate Access System With 2 Relays, 2 Weigand Inputs & LTE - AAS 25-C2

The Ascent C Series cellular gate access system by American Access Systems runs on Summit Control technology. The Ascent C Series offers the user customized programming capabilities, reliability, vandalism resistance, and rugged construction all in a stunning package.

The Ascent C Series is packed with powerful features that give you control of your vehicle gate, pedestrian gate, and/or garage door. The device is fully programmable, monitored and easily managed via the Summit Control web portal. You can open, latch open, or close your gate via any phone, anywhere in the world.

Each unit ships with a T-Mobile SIM card installed and ready for activation. Go solar and utilize the sun's free power! This unit is solar friendly.

12 - 24 VAC or VDC Transformer sold separately.

Features

  • 4G LTE cellular
  • 2 Wiegand inputs
  • Ascent Connect integration
  • Control up to 2 gates/doors
  • Cloud-based access control management
  • Up to 10,000 app, text, and voice users
  • Location-Based Access Control (LBAC)
  • Push and/or email event and status notifications
  • 7-day timers
  • Holiday and special-event timers
  • Temporary users with permission limits
  • Audit trail with detailed reports
  • "Do Not Disturb" mode
  • IP65-rated polycarbonate enclosure
  • Includes: Cellular Controller, 2 Relays, 2 Wigand Inputs & LTE

*Pricing and plan options are current as of 1/4/2024. See summitcontrol.com for up-to-date information, plans, and pricing


Business
$49.95 / mo.
Commercial
$69.95 / mo.
Enterprise
$99.95 / mo.
Basic Multi-Tenant
$49.95 / mo.
Plus Multi-Tenant
$69.95 / mo.
Premier Multi-Unit
$89.95 / mo.
Enterprise Multi-Tenant
$129.95 / mo.
X Class Units1
3 5 Unlimited 1 2 5 Unlimited
Users2
200 500 10,000 100 1,250 2,500 5,500
Site Admin 1 3 10 1 1 3 5
Organization Admins 1 3 5 1 2 2 5
App Push Notification Yes Yes Yes Yes Yes Yes Yes
Sites N/A N/A N/A 1 1 3 10
Rollover Calling3
Yes Yes Yes Yes Yes Yes Yes
Broadcast Calling4
Yes Yes Yes Yes Yes Yes Yes
Mass Email Users No No Yes No No No Yes
7-Day Timer Yes Yes Yes Yes Yes Yes Yes
Holiday Timers Yes Yes Yes Yes Yes Yes Yes
Adjustable Mic And Speaker Volume Yes Yes Yes Yes Yes Yes Yes
Mass Text Users No No Yes No No No Yes
Keypad Codes 200 500 10,000 500 1,250 2,500 5,000
Digital Input and/or Event Photo Notification; No No No Yes Yes No No
Set Time Restrictions on Access Codes Yes Yes Yes Yes Yes Yes Yes

  1. Ascent Units: These plans allow for additional units but do not cover the cost. Each extra unit is $29.95/mo. + taxes and fees. All X2 units cost 39.95 + taxes and fees.
  2. Users: Users can be given access via app, text, and/or voice. The system uses each user's unique cell phone number as the credential.
  3. Rollover Calling: Numbers can be selected to roll over to if an initial number is not answered.
  4. Broadcast Calling: When call button is pressed, multiple phone numbers will be called at the same time until the call is answered. You can also add a custom greeting.

Specification Sheet

Quick Start Guide

Weigand Wiring Guide

Ascent Setup Overview

Verizon Activation Guide

Ascent Activation Guide

Summit Control User Guide

Name Summit Control Ascent C Cellular Controller Gate Access System With 2 Relays, 2 Weigand Inputs & LTE - AAS 25-C2
SKU 25-C2
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Application Type Industrial: large apartment complexes, high traffic warehouses, airports, distribution centers
System Type Multi-Door System
Screen Type No Screen
Series Type Ascent C
Price $922.75
