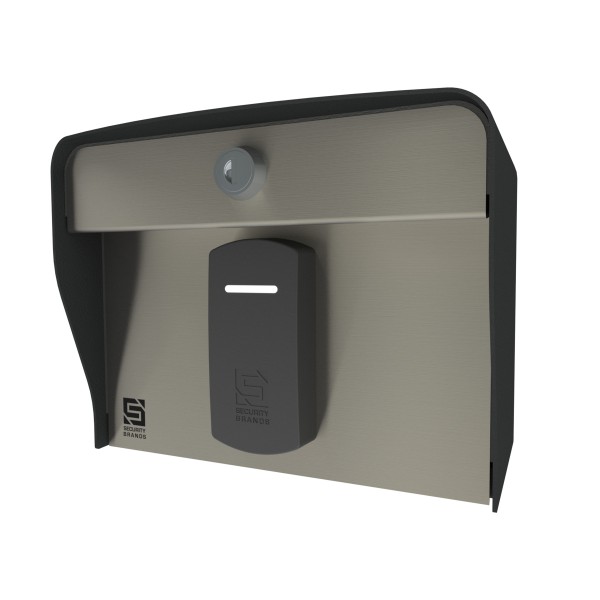

Surface Mount RemotePro Card Reader for SecurePass Units

Surface Mount RemotePro Card Reader for SecurePass Units

Add the RemotePro CR proximity reader to your access control system for easy and convenient control at any access point. Used with post-mountable units, this proximity card reader is compatible with security management systems that have 26-bit Wiegand protocol.

Part Number: 23-100

$430.99 each
$430.99 each

Details

Surface Mount RemotePro Card Reader for SecurePass Units

Is your apartment or business expanding and in need of more card reader access points? Instead of replacing the entire system, add this RemotePro CR. The RemotePro CR is a card reader, surface mounted on Ascent and Edge SecurePass post-mounted units and other security management systems that use a 26-bit Wiegand protocol. HID ProxPoint Plus and Secura Key compatible, this card reader easily connects to a new or existing master controller (via 6-conductor, 22-gauge wire). Simple installation and easy use for convenient entry. Crafted from reliable materials, this card reader is built to withstand natural and human wear and tear. Proudly made in America with global materials.

Specifications

Input: 16.5VAC (transformer included)

Output: n/o or n/c contact 1-99 second

Dimensions: 6.625H x 5.50W x 4.25D

DC Load AC Load

Contact Rating: 1A at 24V .5A at 120V

Max. switching voltage: 150V 220V

Max. carrying current: 2A

Max. switching power: 28W 60VA

Specification Sheet

Prefer to Call? (888) 378-1130

Questions about part number 23-100?

Required Fields *

SKU	23-100
Manufacturer	Security Brands, Inc. / American Access Systems, Inc.
Input Voltage	12 DC
Application Type	Residential: gated communities, apartment complexes
