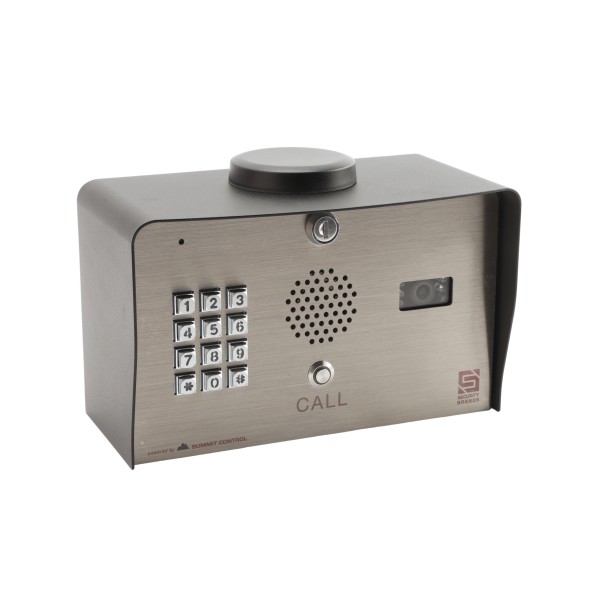

Summit Control Ascent X1 Cellular Telephone Entry System With Keypad, HD Camera & 2 Wiegand Inputs - AAS 16-X1
Details
Summit Control Ascent X1 Cellular Telephone Entry System With Keypad, HD Camera & 2 Wiegand Inputs - AAS 16-X1
Virtually control who is allowed access to your gate from anywhere using your computer, tablet, or phone. The "Ascent X Series" Cellular Telephone Entry System by American Access Systems uses a T-Mobile SIM card to dial any phone number of your choice, allowing communication from your gate to anywhere on the planet. Visitors simply press the call button on the Ascent 16-X1, and it will call you anywhere in the world. You can then see who your guests are first and open the gate using one easy key stroke. Pre-approved access is provided by our revolutionary Summit Control security software via phone app, text or voice.
The Ascent 16-X1 includes a T-Mobile SIM card and is ready for activation. An AT&T SIM card and service plan can be used if necessary or desired. The Ascent X1 uses an app that is downloaded to the "Smart Phone." A monthly cellular provider fee may be required.
Features:
- 4G LTE Cellular (Where Available)
- High-Definition Ascent Camera For Still Photos
- 2 Weigand Inputs
- Control Via 7 Different Methods
- Cloud-Based Access Control Management
- Location-Based Access Control (LBAC)
- Push and/or Email Event and Status Notifications
- 7-Day, Holiday and Special Event Timers
- Temporary Users With Permission Limits
- Audit Trail With Detailed Reports
- "Do Not Disturb" Mode
- Amazon Alexa integration
- Transaction log
- Limited manufacturer's two year warranty
- Lighted Keypad and Call Button
Specifications:
- Stainless Steel Faceplate
- Powder-Coated, Galvanized Steel Enclosure
- Up To 10,000 APP, Text and Voice Users
- Up To 1,000 Keypad Codes
- Control For Up To 2 Different Gates/Doors
- Rollover Calling - Up To 3 Phone Numbers
- Broadcast Calling - Up To 10 Phone Numbers
*Pricing and plan options current as of 2/1/2017. See summitcontrol.com for up-to-date information, plans, and pricing
Residential Plus
$29.95 / mo. |
Residential Premier
$39.95 / mo. |
|
---|---|---|
X Class Units1
|
1 | 3 |
Users2
|
10 | 20 |
Site Admin | 10 | 20 |
Organization Admins | 1 | 1 |
App Push Notification | Yes | Yes |
Sites | 1 | 1 |
Rollover Calling3 |
Yes | Yes |
Broadcast Calling4 |
Yes | Yes |
Mass Email Users | Yes | Yes |
7-Day Timer | Yes | Yes |
Holiday Timers | No | Yes |
Adjustable Mic And Speaker Volume | Yes | Yes |
Mass Text Users | No | Yes |
Keypad Codes | 20 | 50 |
Digital Input and/or Event Photo Notification; | No | No |
Set Time Restrictions on Access Codes | No | Yes |
SKU | 16-X1 |
---|---|
Manufacturer | Security Brands, Inc. / American Access Systems, Inc. |
Programmable Codes | 1000 |
Keypad | Yes |
Input Voltage | 12 DC, 24 DC |
Application Type | Industrial: large apartment complexes, high traffic warehouses, airports, distribution centers |
System Type | Telephone Entry System |
Screen Type | No Screen |
Camera | Yes |
Transformer Included | Yes |
Series Type | Ascent X |
Specifications Sheet | Download PDF file |
Manual | Download PDF file |
Installation Guide | Download PDF file |
Wiring Guide | Download PDF file |
Additional Manual | Download PDF file |
Additional Guide | Download PDF file |
