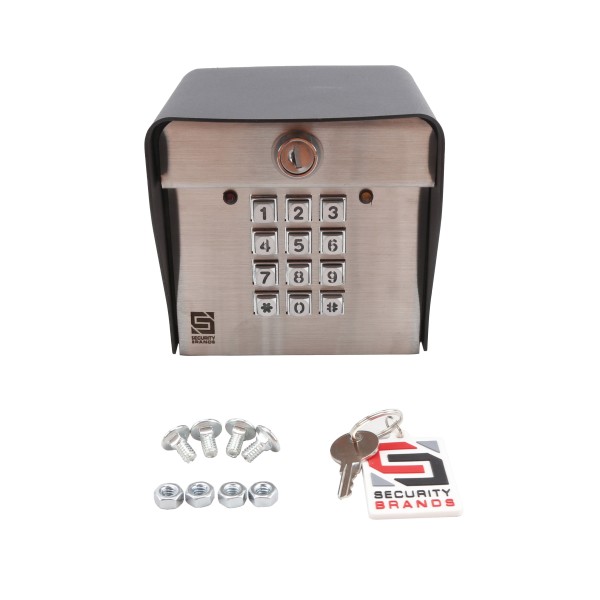

Advantage DK Digital Keypad (Post Mount) - AAS ADV-1000

The most popular digital keypad offered by AAS, the Advantage DK ADV-1000 is a stand alone system that is fully programmable from the keypad. It features a lighted panel with 1,000 fully programmable, independent codes.
Part Number: ADV-1000
$359.76 each
$359.76 each
OR


Details

Advantage DK Digital Keypad (Post Mount) - AAS ADV-1000

The most popular digital keypad offered by AAS, the Advantage DK ADV-1000 is a stand alone system that is fully programmable from the keypad. This post mounted system is made from a high grade, stainless steel faceplate and metal keypad and is housed in a heavy metal, powder coated enclosure that will provide years of trouble-free entry.

The ADV-1000 keyless entry system is the right product for many different applications. It features a lighted panel with 1,000 fully programmable, totally independent codes. It also provides a programmable latch code and sleep code with 3 strikes you're out security, 2 relays and an external event input.

Features

  • Programmable four digit codes available: 1000
  • Programmable Personal Master Code
  • Programmable Latch / Unlatch Code
  • Programmable Sleep Code
  • Three strikes - you're out
  • External Event Input
  • Two relays w/ variable output time: 1- 99 seconds
  • LED indicators
  • Audible tone
  • Non-volatile memory
  • Night Light
  • Optional camera
  • Limited two year warranty

General Specifications

  • Input: 12-24 VAC or VDC
  • Output: n/o or n/c contact 1 -99 second
  • Operating temperature: -15 to 175 Celsius
  • 16 gauge stainless steel faceplate
  • 16 gauge powder coated enclosure
  • Dimensions: 5.25h x 4.75w x 4.50d
  • Intercom: 8 ohm Mylar speaker with call button

Relay Specifications

  • DC Load AC Load
  • Contact Rating 1A @ 24V .5A @ 120V
  • Max. switching voltage 150V 220V
  • Max. carrying current 2A 2A
  • Max. switching power 28W 60VA

12 - 24 VAC or VDC. Transformer sold separately.

Specification Sheet

Quick Start Guide

SKU ADV-1000
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Programmable Codes 1000
Features Backlit/ Nightlight, Hardware Included, Lock
Mounting Type Post Mount
Application Type Residential: gated communities, apartment complexes
Series Type Advantage
