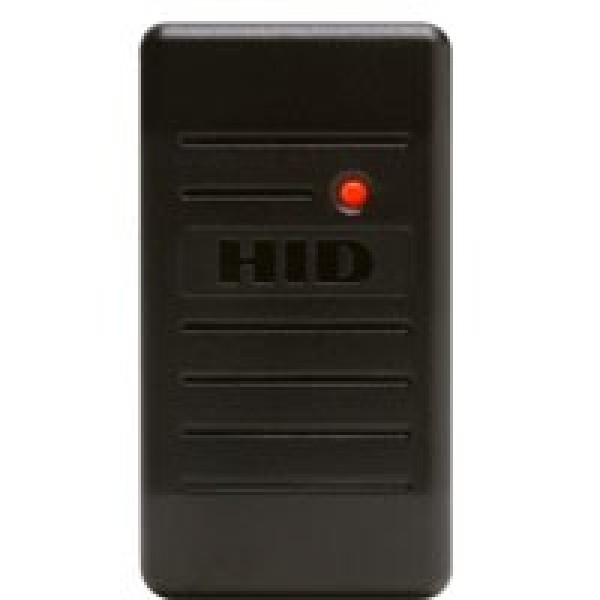

HID Wiegand Proximity Card Reader (3–5-inch Range) - 40-006

This is a perfect solution for expanding an access control system that already utilizes an existing master controller.
Part Number: 40-006
$191.22 each
$191.22 each
OR


Details

HID Wiegand Proximity Card Reader (3–5-inch Range) - 40-006

American Access Systems now offers the RemotePro CR line of wiegand output card readers, available in post or surface mount. In addition, all surface mount models may be post mounted with the additional purchase of a mounting plate (#2-005 or 2-006).

Each AAS RemotePro CR is constructed of very durable and vandal resistant Lexan, providing years of trouble free entry.

The RemotePro CR series is designed to operate in conjunction with the American Access Systems, Inc AdvantageDG card reader controller system, the AAS ProAccess 200 multi door controller, as well as many popular security management systems using a wiegand protocol. Simply connect the RemotePro CR of your choice to a new or existing master controller (via 6 conductor, 22 guage wire) and you have immediate access control.

This is a perfect solution for expanding an access control system that already utilizes an existing master controller.

Features

  • Input: 9 - 12 VDC (supplied by master controller)
  • Operating temperature: -15 to 175 Fahrenheit
  • Dimensions: 3.125h x 1.75w x 0.75d
  • Read Range: 3 - 5 inches
  • LED indicators
  • Limited one year warranty

AAS 40-006 Brochure

Name HID Wiegand Proximity Card Reader (3–5-inch Range) - 40-006
SKU 40-006
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Product Type Card Reader
Mounting Type Surface Mount
Connection Type Wired
Max Read Range 5 Inches
Price $191.22
