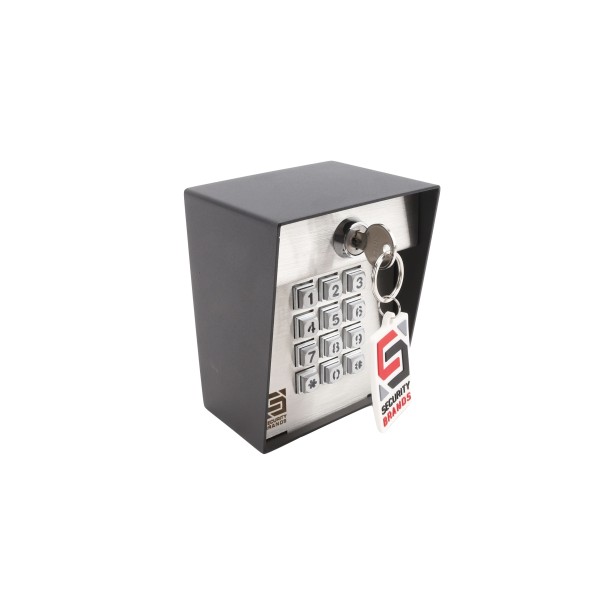

Advantage DKE Digital Economy Metal Keypad (Post Mount) - AAS 26-100L

Are you in need of an inexpensive keypad? The economical Advantage DKE digital keyless entry system features 500 fully programmable, four-digit codes.
Part Number: 26-100L
$221.04 each
$221.04 each
OR


Details

Advantage DKE Digital Economy Metal Keypad (Post Mount) - AAS 26-100L

Are you in need of an inexpensive keypad? The economical Advantage DKE digital keyless entry system features 500 fully programmable, four-digit codes.

This AdvantageDKE post mount model is housed in a heavy metal, powder coated enclosure with a stainless steel faceplate. A metal keypad is used, providing years of trouble free use. With its 500 code capacity, the 26-100L keypad is the perfect solution for many low cost installations.

Features

  • 500 programmable four digit codes
  • Programmable Personal Master Code
  • Programmable Latch / Unlatch Code
  • Night Light
  • Variable relay output time: 1 - 9 seconds
  • Audible tone
  • Non-volatile memory
  • Power consumption: 25mA @ 24VAC
  • Limited two year warranty
  • Post mount

General Specifications

  • Input: 12-24 VAC or VDC
  • Output: n/o or n/c contact 1 -9 second
  • Operating temperature: -15 to 175 Fahrenheit
  • 16 gauge stainless steel faceplate
  • 16 gauge powder coated enclosure
  • Dimensions: 26-100L: 5.25h x 4.00w x 3.00d
  • Ship weight: 5 lbs.

Relay Specifications

  • DC Load AC Load
  • Contact Rating 1A @ 24V .5A @ 120V
  • Max. switching voltage 150V 220V
  • Max. carrying current 2A 2A
  • Max. switching power 28W 60VA

Specification Sheet

Quick Start Guide

Manual

Name Advantage DKE Digital Economy Metal Keypad (Post Mount) - AAS 26-100L
SKU 26-100L
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Programmable Codes 500
Features Backlit/ Nightlight, Hardware Included, Lock
Mounting Type Post Mount
Application Type Commercial: business offices, warehouses, retail stores
Series Type Advantage
Price $221.04
