RemotePro KP Wiegand Output Keypad w/ Intercom (Controller Not Included) - 12-000i

Wiegand Output Slave Keypad with Intercom - Post Mount
Part Number: 12-000i
$329.80 each
$329.80 each
OR


Details

RemotePro KP Wiegand Output Keypad w/ Intercom (Controller Not Included) - 12-000i

American Access Systems, Inc. now offers the RemotePro KP line of 26 bit wiegand output keypads, available in three different mounting configurations: post, single gang or flush.

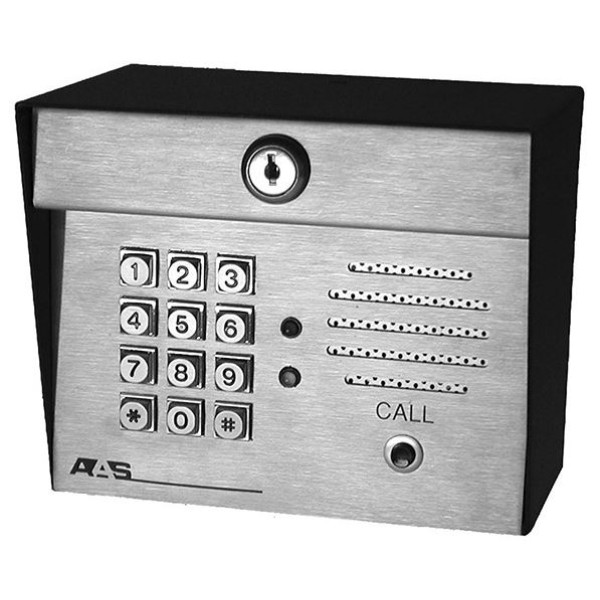

All single gang RemotePro KP models are available with a silver aluminum faceplate. A heavy duty metal keypad is used with all exterior models and a durable plastic keypad is used with the interior models, providing years of trouble free entry. Post mount models feature a stainless steel faceplate in a heavy metal, powder coated enclosure with nightlight.

The RemotePro KP series is designed to operate in conjunction with the American Access Systems, Inc AdvantageDKS II keypad controller system, the AAS ProAccess 200 multi door controller, as well as many popular security management systems using a 26 bit wiegand protocol. Simply connect the RemotePro KP of your choice to a new or existing master controller (via 6 conductor, 22 gauge wire) and you have immediate access control.

This is a perfect solution for expanding an access control system that already utilizes an existing master controller.

Code amount specified by controller!

Features

  • Stainless Steel Faceplate
  • User defined facility code: Dipswitch settings on board
  • LED indicators
  • Optional camera
  • Audible tone
  • Night Light
  • Limited two year warranty

Technical Specifications

  • Input: 9 - 12 VDC (supplied by master controller)
  • Operating temperature: -15 to 175 Fahrenheit
  • 16 gauge stainless steel faceplate
  • 16 gauge powder coated enclosure
  • Dimensions: 5.50h x 6.25w x 4.50d
  • Intercom: 8 ohm Mylar speaker w/ call button

Quick Start Guide

Specification Sheet

Manual

Name RemotePro KP Wiegand Output Keypad w/ Intercom (Controller Not Included) - 12-000i
SKU 12-000i
Manufacturer Security Brands, Inc. / American Access Systems, Inc.
Product Type Intercom Keypad
Mounting Type Pedestal Mount
Connection Type Wired
Price $329.80
